Hello world

The strict minimum: a diagram written by hand using @choo-choo/core’s builder, rendered through the vanilla binding. No grammar, no parser.

Install

Terminal window
pnpm init
pnpm add @choo-choo/core @choo-choo/vanilla
pnpm add -D vite

Add a dev script

Open the generated package.json and add a dev script:

{
  "scripts": {
    "dev": "vite"
  }
}

Create index.html

At the project root:

<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8" />
    <title>choo-choo quickstart</title>
  </head>
  <body>
    <div id="diagram"></div>
    <script type="module" src="/src/main.ts"></script>
  </body>
</html>

Create src/main.ts

import "@choo-choo/vanilla/styles.css";
import { diagram, sequence, terminal } from "@choo-choo/core";
import { mount } from "@choo-choo/vanilla";


mount(document.getElementById("diagram")!, {
  ir: diagram(sequence(terminal("hello"), terminal("world"))),
});

Run

Terminal window
pnpm dev

Open http://localhost:5173.

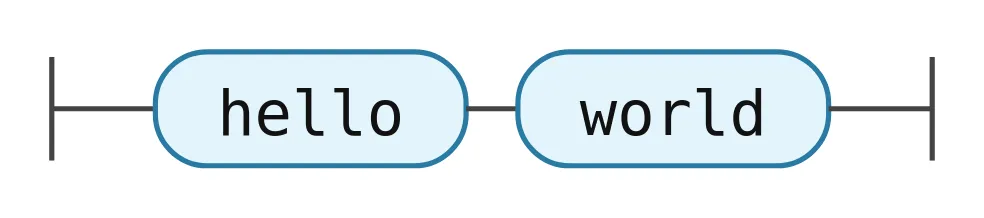

You should see two terminals (hello, world) chained on a single track.

Screenshot of the minimal "hello world" rendered diagram
