Grammar example

If you haven’t already, follow Hello world first to set up package.json, index.html and Vite. We’ll now add one extra dependency and a different main.ts.

Install the parser

pnpm add @choo-choo/parser-ebnf

Replace src/main.ts

import "@choo-choo/vanilla/styles.css";
import { mount } from "@choo-choo/vanilla";
import { ebnfParser } from "@choo-choo/parser-ebnf";

mount(document.getElementById("diagram")!, {
  source: `
    digit = "0" | "1" ;
    pair  = digit , digit ;
  `,
  parser: ebnfParser,
  rule: "pair",
});

Reload http://localhost:5173.

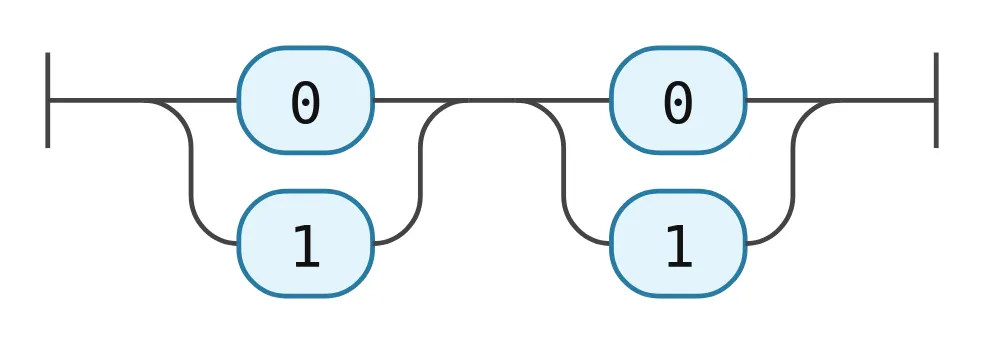

The diagram now shows two choices of 0 or 1 in sequence, expanded from the EBNF source.
